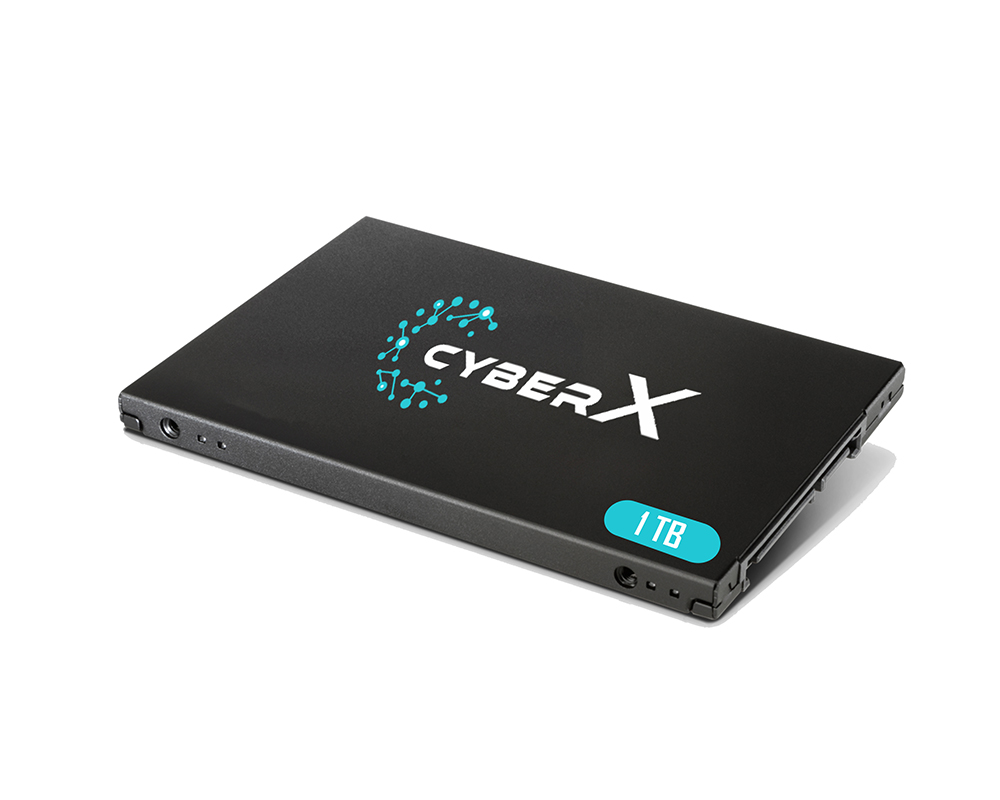

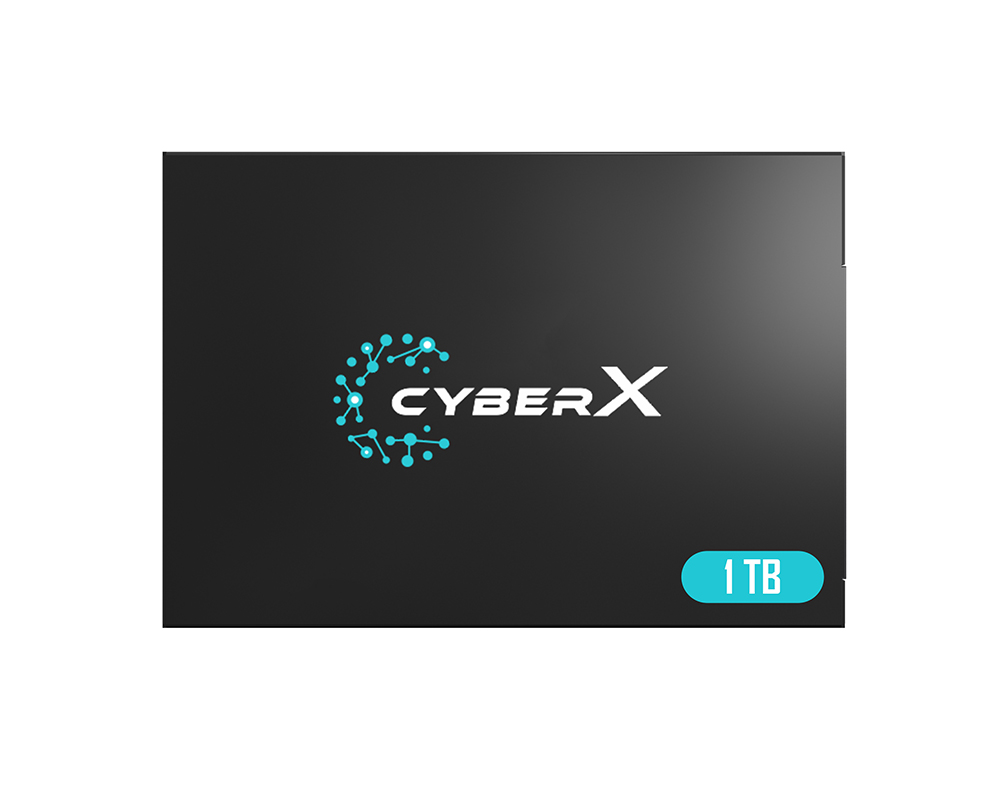

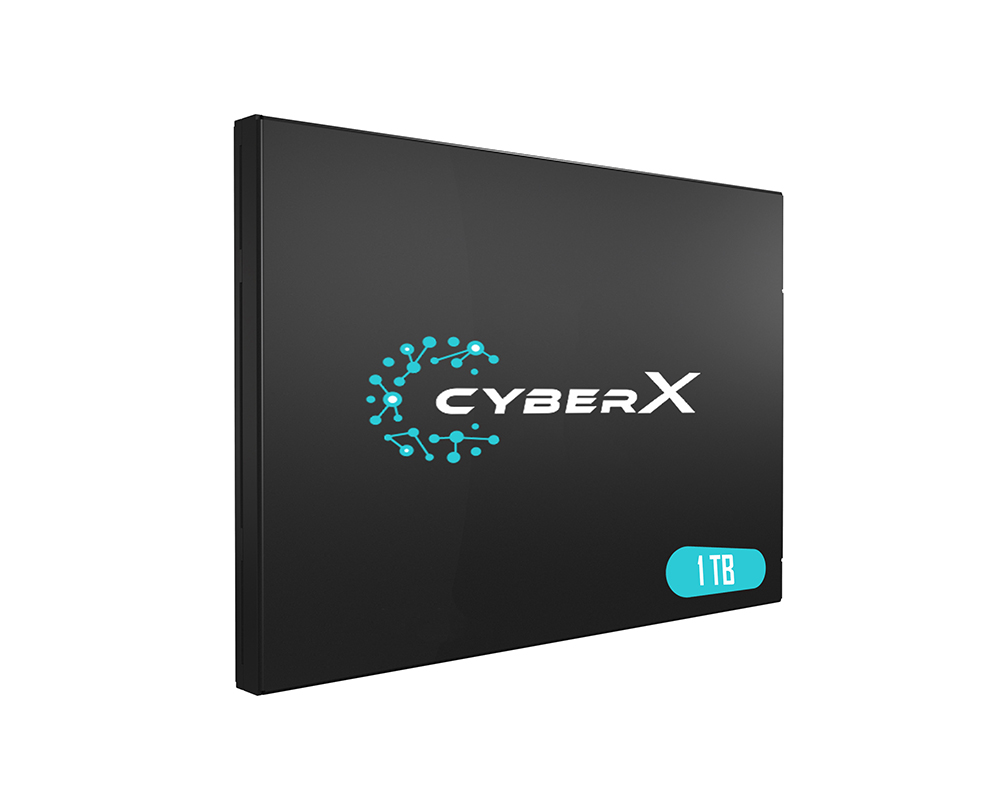

CyberX 2.5" inch SATA III SSD

(CY-10)

Features
Available Capacities:

120GB 128GB 240GB 256GB 480GB 512GB 1TB

Max Sequential Read/Write Speed : 550/460 MB/s
SATA 3.0 (6Gb/s) interface
S.M.A.R.T. support
TRIM support (OS/driver required)
High-reliability 3D TLC NAND flash

RELIABLE AND AFFORDABLE

Upgrade your desktop or laptop with the CYBERX SSD and enjoy immediate gains in speed and productivity. Our Solid State Drive is a rock-solid all-around performer that's as reliable as it is affordable. Designed and precision-crafted in Taiwan to our demanding specs, the CYBERX SSD is optimized for low power consumption, which means longer battery life for your devices and more time to get your work done.

SSD

HIGHLY RESPONSIVE

From streaming video to multitasking, the needs of business and personal users are placing ever-increasing demands on today’s hard drives. The CYBERX Internal SSD SATA III uses advanced technology to direct data streams to the appropriate layer for maximum performance, greatly improving responsiveness and extending the life of the flash drive. The sequential read/write speeds can reach up to 550 mb/s

SSD

BUILT-IN RELIABILITY

Advanced NAND recovery techniques and powerful error detection and correction capabilities ensure reliable data reads under punishing conditions. The CYBERX Internal SSD SATA III uses write-minimization technology, which eliminates unnecessary write operations to increase endurance and performance

SSD

Physical

  • Capacity
    120GB, 128GB, 240GB, 256GB, 480GB, 512GB, 1TB
  • Form Factor
    2.5"
  • Type
    7mm Internal Solid State Drive (SSD)
  • Interface
    SATA-III 6Gb/s
  • Memory Components
    3D TLC
  • Controller
    Silicon Motion SM2258XT
  • Dimension (Max: LxWxH)
    7mm x 69.9mm x 100mm

Performance

  • Max Sequential Read Speed
    120GB: Up to 550MB/s
    240GB: Up to 550MB/s
    480GB: Up to 550MB/s
    1TB: Up to 550MB/s
  • Max Sequential Write Speed
    120GB: Up to 350MB/s
    240GB: Up to 420MB/s
    480GB: Up to 460MB/s
    1TB: Up to 460MB/s
  • 4KB Random Read
    120GB: Up to 29,000 IOPS
    240GB: Up to 30,000 IOPS
    480GB: Up to 75,000 IOPS
    1TB: Up to 75,000 IOPS
  • 4KB Random Write
    120GB: Up to 79,000 IOPS
    240GB: Up to 61,000 IOPS
    480GB: Up to 75,000 IOPS
    1TB: Up to 75,000 IOPS
  • Seek Time
    <0.1ms
  • MTTF
    1,500,000 hours

Environmental

  • Operating Temperature
    0°C-70°C
  • Storage Temperature
    -40°C-85°C
  • Shock Resistance
    1500G
  • Power Consumption
    0.08W
  • Power Consumption (Active)
    2W

Compatibility

  • Target Applications
    Client desktops and laptops
  • Services and Support
    3-year manufacturer's warranty
  • Performance Optimization
    TRIM, Idle Time Garbage Collection
  • Certifications
    RoHS, FCC, CE

Form factor File Action
Product Datasheet PDF View
