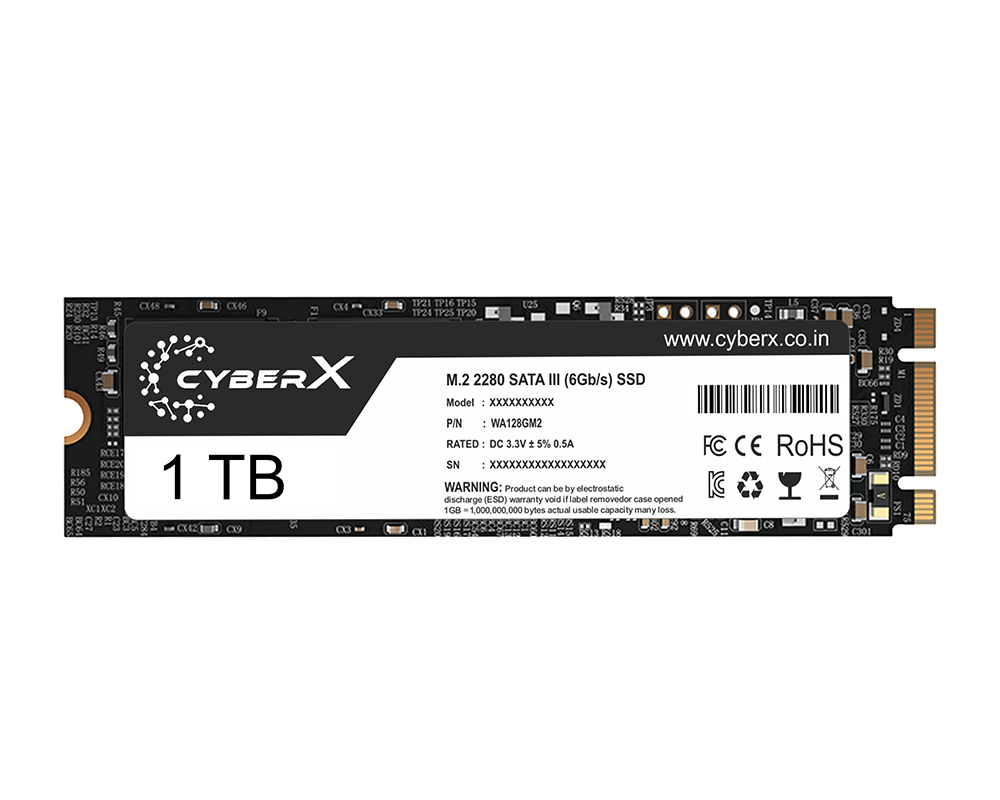

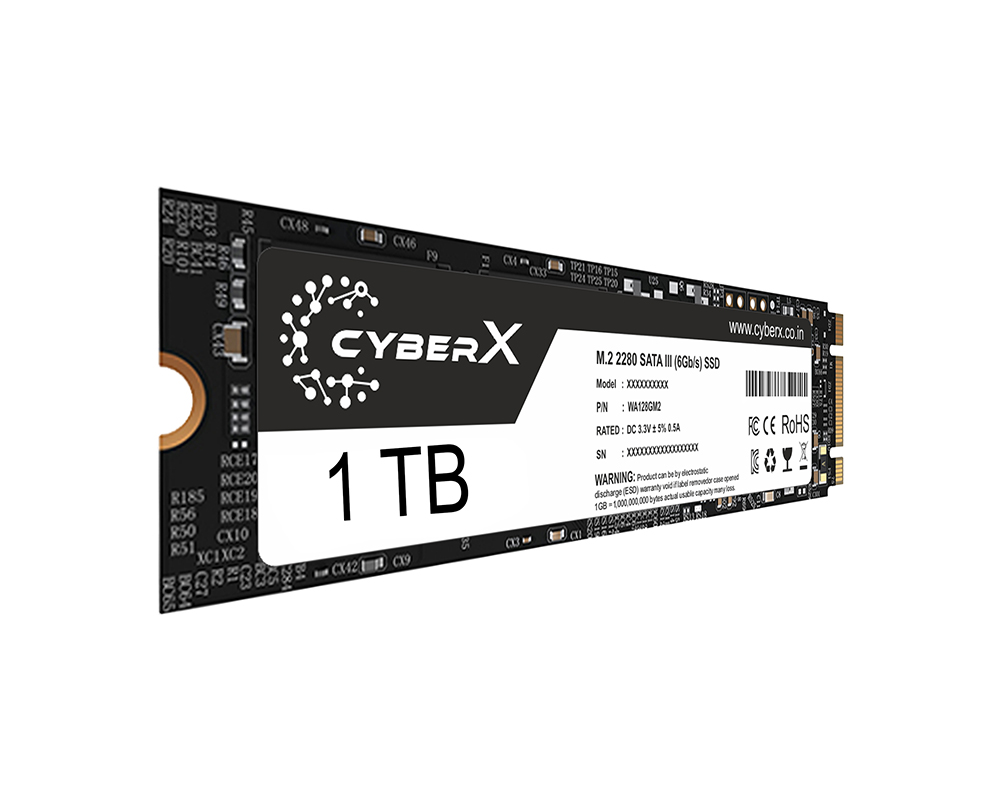

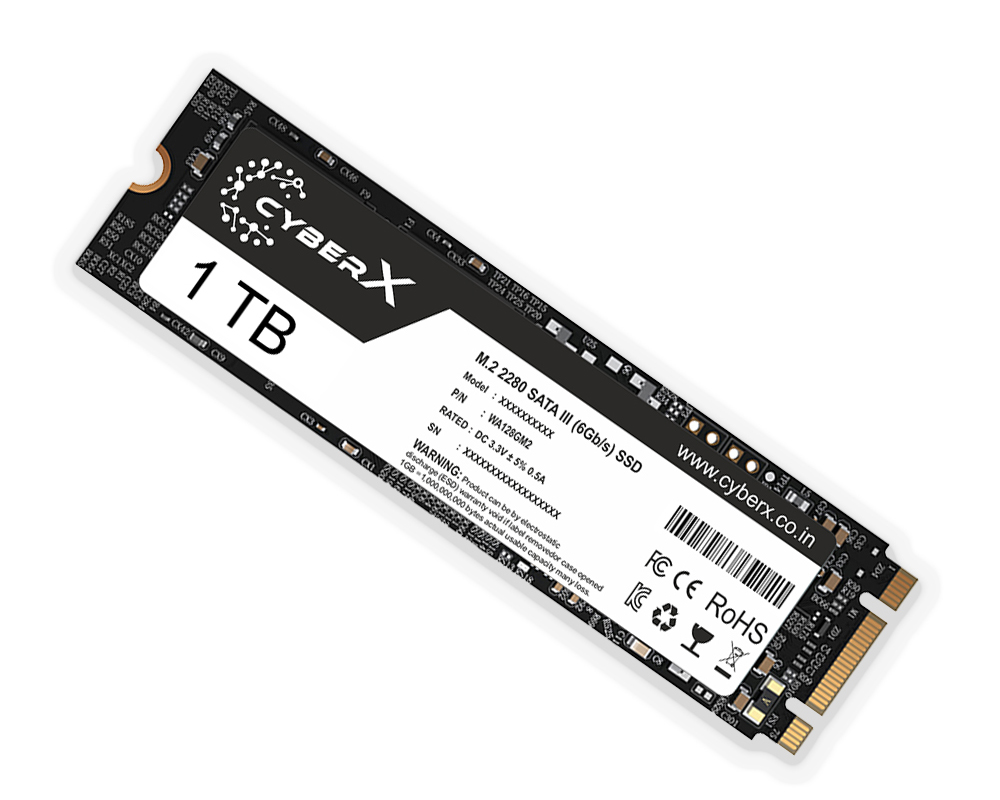

CyberX M.2 SATA III SSD

(CYM-280-M)

Features
Available Capacities:

128GB 256GB 512GB 1TB

Max Sequential Read/Write Speed : 550/460 MB/s
SATA 3.0 (6Gb/s) interface
S.M.A.R.T. support
TRIM support (OS/driver required)
High-reliability 3D TLC NAND flash

CYBERX SSD M.2 SATA III 6GB/S

CYBERX M.2 SSD uses high-quality 3D flash chips and enhanced firmware algorithms. The CYBERX SSD's SATA III 6Gb/s interface performs the exceptional transfer speeds and space-saving M.2 SATA form factor (80 mm) is perfect for ultra-compact computing devices. The CYBERX SSD is guaranteed to deliver peerless reliability and greater performance.

SSD

THE LATEST 3D NAND TECHNOLOGY

3D NAND flash is a type of flash memory in which the memory cells are stacked vertically in multiple layers. 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance.

SSD

INTELLIGENT LDPC

CYBERX M.2 SSD maintains optimized performance and data integrity during even the most intense gaming, rendering, overclocking, or other high-demand applications.

SSD

TRANSFER SPEED & PERFORMANCE

Taking full advantage of the SATA III 6Gb/s interface and built in with 3D NAND flash, the CYBERX SSD achieves exceptional transfer speeds of up to 550MB/s.

SSD

Physical

  • Capacity
    128GB, 256GB, 512GB, 1TB
  • Form Factor
    M.2 (2280)
  • Type
    M.2 (2280) Internal Solid State Drive (SSD)
  • Interface
    SATA-III 6Gb/s
  • Memory Components
    3D TLC
  • Controller
    Silicon Motion SM2258XT
  • Dimension (Max: LxWxH)
    80mm x22mm x 3.8mm
  • Weight
    7g

Performance

  • Max Sequential Read Speed
    120GB: Up to 550MB/s
    240GB: Up to 550MB/s
    480GB: Up to 550MB/s
    1TB: Up to 550MB/s
  • Max Sequential Write Speed
    120GB: Up to 350MB/s
    240GB: Up to 420MB/s
    480GB: Up to 460MB/s
    1TB: Up to 460MB/s
  • 4KB Random Read
    120GB: Up to 29,000 IOPS
    240GB: Up to 54,000 IOPS
    480GB: Up to 75,000 IOPS
    1TB: Up to 78,000 IOPS
  • 4KB Random Write
    120GB: Up to 79,000 IOPS
    240GB: Up to 81,000 IOPS
    480GB: Up to 81,000 IOPS
    1TB: Up to 81,000 IOPS
  • Seek Time
    <0.1ms
  • MTTF
    1,500,000 hours

Environmental

  • Operating Temperature
    0°C-70°C
  • Storage Temperature
    -40°C-85°C
  • Shock Resistance
    1500G
  • Input Voltage
    3.3 V ±5 %
  • Power Consumption
    0.08W
  • Power Consumption (Active)
    2W

Compatibility

  • Target Applications
    Client desktops and laptops
  • Services and Support
    3-year manufacturer's warranty
  • Performance Optimization
    TRIM, Idle Time Garbage Collection
  • Certifications
    RoHS, FCC, CE

Form factor File Action
Product Datasheet PDF View
