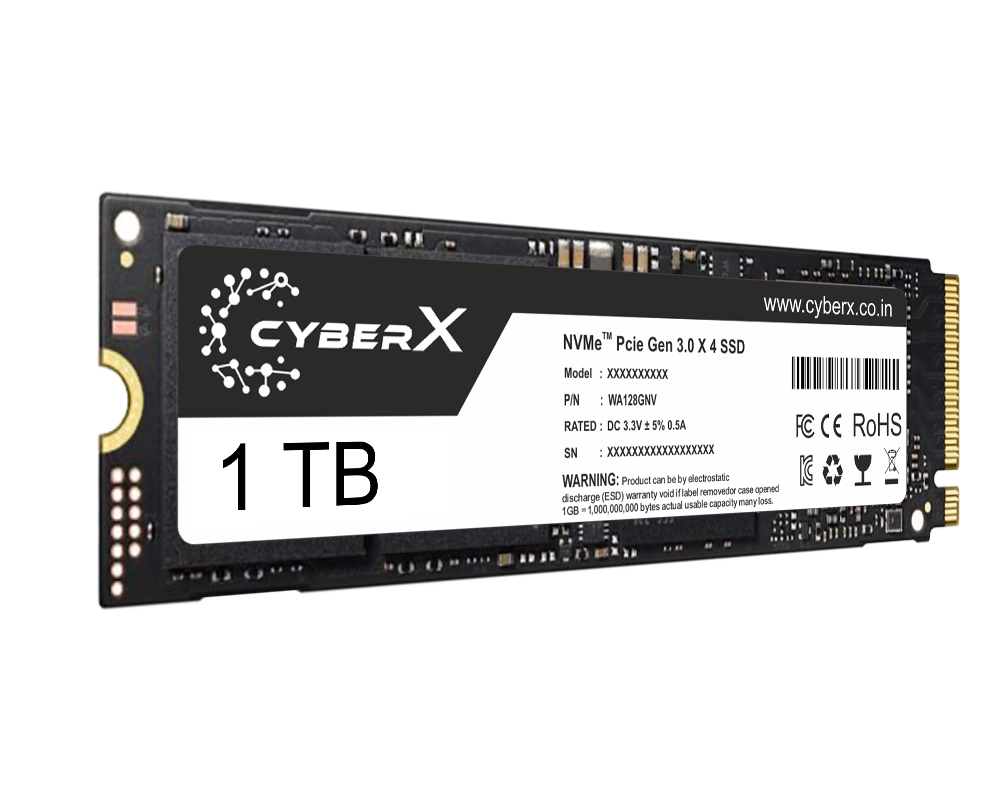

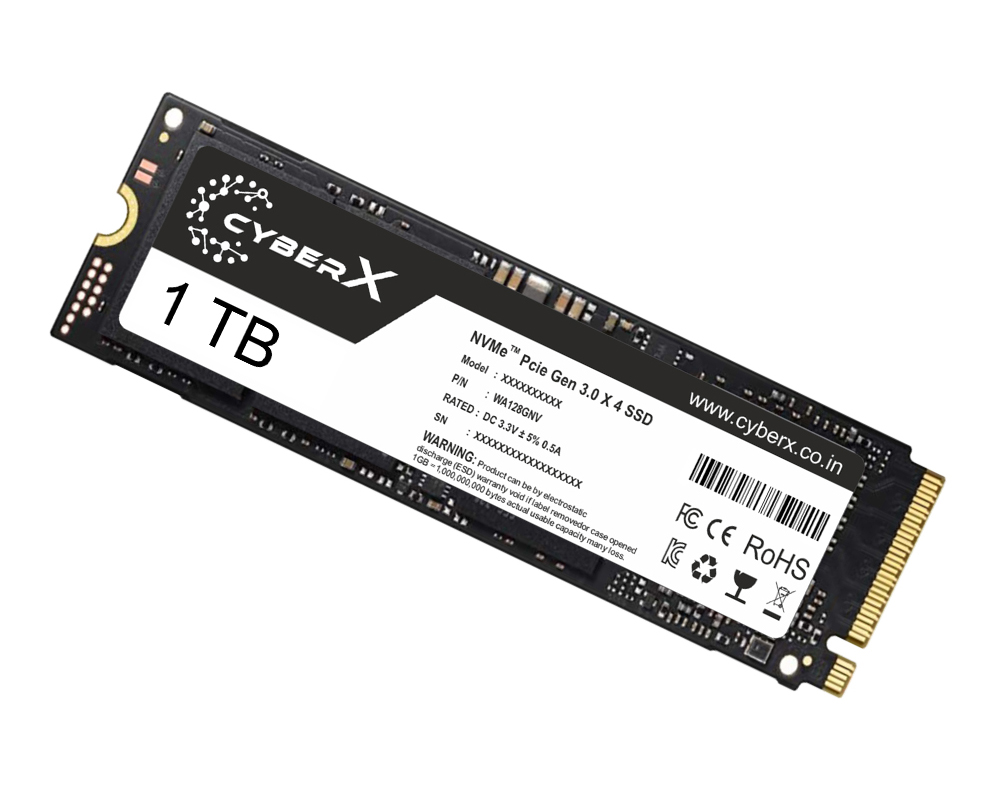

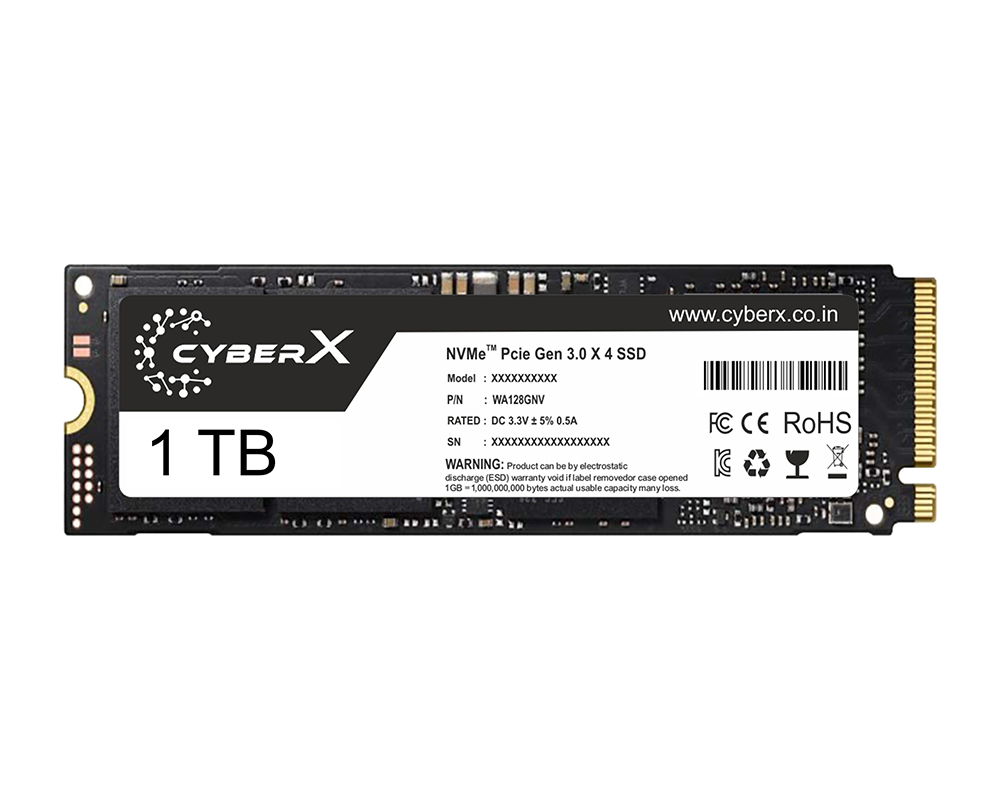

CyberX NVME SATA III SSD

(CYM-280-NV)

Features
Available Capacities:

128GB 256GB 512GB 1TB

Max Sequential Read/Write Speed : 2100/1800 MB/s
SATA 3.0 (6Gb/s) interface
S.M.A.R.T. support
TRIM support (OS/driver required)
High-reliability 3D TLC NAND flash

RELIABLE AND AFFORDABLE

Upgrade your desktop or laptop with the CYBERX SSD and enjoy immediate gains in speed and productivity. Our Solid State Drive, the CYBERX SSD is a rock-solid all-around performer that's as reliable as it is affordable. Designed and precision-crafted to our demanding specs, the CYBERX SSD is optimized for low power consumption, which means longer battery life for your devices and more time to get your work done.

SSD

PCIE GEN3X4 NVME – THE UPGRADE THAT PUTS IN 3.5X THE WORK

Move beyond the pace of a SATA SSD’s with an upgrade to the CYBERX NVMe SSD and get 3.5x the speed of SATA-based SSD3. With PCIe Gen3x4 NVMe 1.3 standard, and speeds up to 2100MB/s, you will feel the improved performance from boot-ups, software load times, and transfers giving you maximum efficiency without the constant slowdowns. The CYBERX NVMe SSD is built with 3D NAND flash inside.

SSD

BUILT TO LAST

Unlike traditional hard disk drives, the CYBERX NMVe SSD has no moving parts, so it’s less likely to fail. On top of that, it’s also shock and vibration resistant, making it one robust and reliable SSD

SSD

Physical

  • Capacity
    128GB, 256GB, 512GB, 1TB
  • Form Factor
    M.2 (2280)
  • Type
    M.2 (2280) Internal Solid State Drive (SSD)
  • Interface
    PCIe Gen3 x4 NVMe 1.3
  • Memory Components
    3D TLC
  • Controller
    Silicon Motion SM2262
  • Dimension (Max: LxWxH)
    80mm x 22mm x 3.8mm

Performance

  • Max Sequential Read Speed
    128GB: Up to 1215MB/s
    256GB: Up to 2100MB/s
    512GB: Up to 2100MB/s
    1TB: Up to 2100MB/s
  • Max Sequential Write Speed
    128GB: Up to 515MB/s
    256GB: Up to 1000MB/s
    512GB: Up to 1700MB/s
    1TB: Up to 1800MB/s
  • 4KB Random Read
    128GB: Up to 91,000 IOPS
    256GB: Up to 179,000 IOPS
    512GB: Up to 335,000 IOPS
    1TB: Up to 283,000 IOPS
  • 4KB Random Write
    128GB: Up to 133,000 IOPS
    256GB: Up to 257,000 IOPS
    512GB: Up to 277,000 IOPS
    1TB: Up to 280,000 IOPS
  • Seek Time
    <0.1ms
  • MTTF
    1,500,000 hours

Environmental

  • Operating Temperature
    0°C-70°C
  • Storage Temperature
    -40°C-85°C
  • Shock Resistance
    1500G
  • Power Consumption
    0.3W
  • Power Consumption (Active)
    5.7W

Compatibility

  • Target Applications
    Client desktops and laptops
  • Services and Support
    3-year manufacturer's warranty
  • Performance Optimization
    TRIM, Idle Time Garbage Collection
  • Certifications
    RoHS, FCC, CE

Form factor File Action
Product Datasheet PDF View
